EXTRA-LENGTH
LAMINATED DOCK BUMPERS
|
|
 |
|
Used
on loading docks with dock seals,
or where refrigeration or warmth is need.

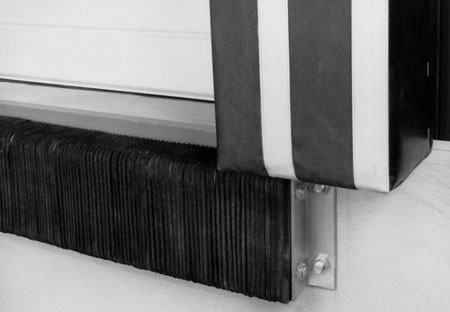

Loading dock bumper and the dock-seal
interact to completely seal the truck to the
dock.. |
|
|
|
Uses/Applications: |
|
•
Have unlimited applications in factories,
warehouses and docks.
• Vehicle impact protection for loading
docks.
• Projecting above low docks.
• Rub rails at the sides of truck wells.
• Wall bumpers to protect against fork lift
trucks.
• Special construction features to accom-
modate unusual anchoring conditions |
|
|
|
|
|
|
Features
|
|
|
|
|
|
•
Tough piles of truck tire material virtually eliminates
chipping or
abrasion, unlike molded rubber, extruded
rubber, conveyor
belting or wood plank bumpers.
• Attractive deep black color enhances a neat,
professional
architectural look.
• Manufactured under pressure exceeding 1,500 lbs.
to absorb
over 80% of impact force.
• Anchor bolts are protected by at least 3"
of rubber to prevent
damage.
• Maintenance free. |
|
|
|
|
|
Installation
|
|
|
•
Structural mounting angles permit welded
installations or provide bolting through
steel.
• No assembly required. |
|
|
|
|
|
Material/Thickness
|
|
|
•
Durable Laminated Dock Bumpers
contain 80% recycled material from
fabric reinforced rubber pads cut from
selected recycled truck tires.
• Rubber pads laminated between struc-
tural steel angles and secured with 3/4"
steel tie rods. |
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
Specifications
|
|
•
Resilient rubber material of bumpers shall be rub-
berized-fabric truck tires cut to uniform
size pads
4-1/2" x 10", 6" x 10",
4-1/2" x 12", or 6" x 12".
Pads punched to receive 3/4" supporting
rods.
• All bumper are closed with two 1/4" structural
angles under approximately 1,500 lbs of
pressure.
The angles are welded to 3/4" rods
at one end and
closed with threaded rod and nut at the
other end.
1/4" flat plates may be substituted
for one of both
angles.
• The anchor leg of angle extends a minimum of
3"
beyond the rubber surface at either end
and contains
two or three 13/16" anchor bolt holes
as required.
(Anchor bolts are supplied separately.)
• Black finish. |
|
|
|
|
|
|
Benefits
|
|
|
|
Notes:
|
|
•
Prevents loss of refrigeration of warmth.
• Maintenance free-weather resistant.
• Absorbs over 80% of truck impact and shock
to
protect dock and building.
• 5 year warranty.
|
•
1/4" flat plates may be substituted for one or
both angles.
• If additional anchorage devices are required
there is an
additional charge for each device.
• Drawings are anchorage devices are available. |
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|

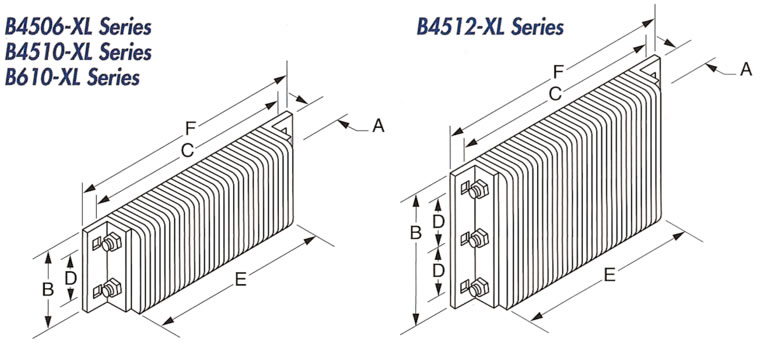

PRICES
|
|
Model No. |
*Size ( A x B x C) |
Wt. Lbs. |
Prices |
Galvanized Add-On |
|
4 1/2" Thick Series |
|
B4506-87-A* |
6" x 87" |
98 |
$262.81 |
$25.20 |
|
B4506-99-A* |
6" x 99" |
121 |
$306.58 |
$25.20 |
|
B4510-51-A* |
10" x 51" |
101 |
$222.74 |
$25.20 |
|
B4510-63-A* |
10" x 63" |
124 |
$275.30 |
$25.20 |
|
B4510-75-A* |
10" x 75" |
147 |
$321.67 |
$25.20 |
|
B4510-87-A* |
10" x 87" |
172 |
$376.95 |
$35.30 |
|
B4510-99-A* |
10" x 99" |
193 |
$426.04 |
$35.30 |
|
B4510-111-A* |
10" x 111" |
218 |
$488.27 |
$44.85 |
|
B4510-123-A* |
10" x 123" |
238 |
$540.83 |
$44.85 |
|
B4512-51-A* |
12" x 51" |
120 |
$278.12 |
$31.39 |
|
B4512-63-A* |
12" x 63" |
148 |
$339.70 |
$31.39 |
|
B4512-75-A* |
12" x 75" |
175 |
$390.74 |
$31.39 |
|
B4512-87-A* |
12" x 87" |
202 |
$463.40 |
$42.03 |
|
B4512-99-A* |
12" x 99" |
230 |
$524.97 |
$42.03 |
|
B4512-111-A* |
12" x 111" |
258 |
$587.20 |
$50.39 |
|
B4512-123-A* |
12" x 123" |
284 |
$648.56 |
$50.39 |
|
6" Thick Series |
|
B610-51-A* |
10" x 51" |
126 |
$222.74 |
$38.12 |
|
B610-63-A* |
10" x 63" |
154 |
$275.30 |
$38.12 |
|
B610-75-A* |
10" x 75" |
182 |
$321.67 |
$48.22 |
|
B610-87-A* |
10" x 87" |
216 |
$376.95 |
$48.22 |
|
B610-99-A* |
10" x 99" |
244 |
$426.04 |
$48.22 |
|
B610-111-A* |
10" x 111" |
272 |
$488.27 |
$58.86 |
|
B610-123-A* |
10" x 123" |
307 |
$540.83 |
$58.86 |
|
B612-51-A* |
12" x 51" |
154 |
$278.12 |
$47.02 |
|
B612-63-A* |
12" x 63" |
188 |
$339.70 |
$58.86 |
|
B612-75-A* |
12" x 75" |
223 |
$390.74 |
$58.86 |
|
B612-87-A* |
12" x 87" |
258 |
$463.40 |
$70.05 |
|
B612-99-A* |
12" x 99" |
299 |
$524.97 |
$70.05 |
|
B612-111-A* |
12" x 111" |
333 |
$587.20 |
$79.50 |
|
B612-123-A* |
12" x 123" |
374 |
$648.56 |
$79.50 |
|
|
Note:
1/4" flat plates may be substituted for one
or both angles.
* Refer to form XL-1 and insert the number indicating
the TYPE of anchorage device desired. (AD-1, AD-2,
AD-3
or AD-T.) AD-3 will be used unless otherwise specified.
If additional anchorage devices are required, ADD
$16.62
each, additional galvanized AD's ADD $21.72
each.

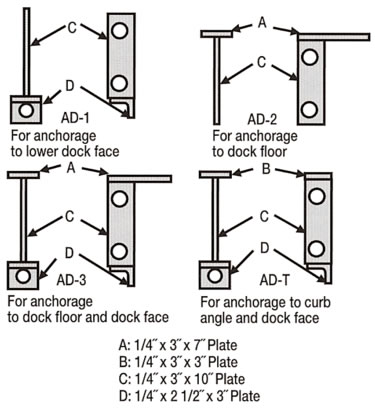

Note: Drawings of Anchorage Devices are shown
above.
|
|
|
