FIXED STEEL LADDERS - SERIES F AND SERIES M
Our fixed steel ladders are designed for use where safe, solid vertical climbing access is required. Series F and Series
M modular fixed steel ladders are available with and without walk-thru handrails at the top landing surface. Standard
fixed and walk-thru models can be used up to 20' without safety cages. OSHA requires safety cages on ladder heights
exceeding 20'. Separate cages are offered for updating older ladders to current safety standards. All our fixed ladders
meet or exceed ANSI A14.3, OSHA 1910.27 and 1926.1053 standards.

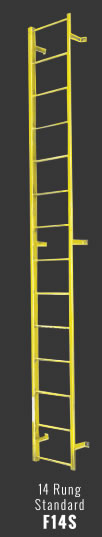

SERIES F FIXED LADDERS:

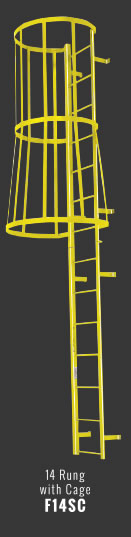

Ladders are heavy duty one-piece welded assemblies.		 FIXED LADDERS WITH
SAFETY CAGES:
Standard fixed steel ladders are
combined with safety cage
protection. They are available
in 10' through 29' sizes and are
ideal for hatch-way or side step
landing access.

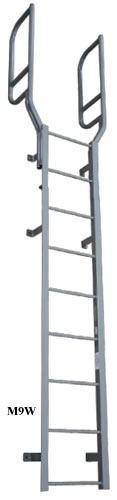

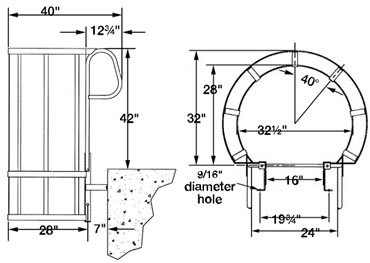

SERIES M MODULAR FIXED
LADDERS: Ladders are heavy
duty sub-assemblies, no section is
greater than 7' in length.

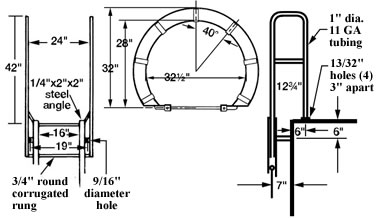

CONSTRUCTION FEATURES: CAGE FEATURES:
Side members are 1/4"x2"x2"
   steel angle. Climbing rungs are
    3/4" corrugated steel round
    rungs space on 12" centers.
    Stand-off brackets are 7".		 OSHA design safety cages have
    flared bottom opening for easy
    entry.
Left or right side step access
    cage designs are available at
    no charge.
Gray powder coat finish is
    standard color, yellow available
    at no additional charge.
Cage begins 6' 9" (7'-series M)
    from bottom rung.
Gray powder coat finish, yellow
    available.

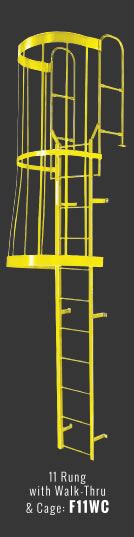

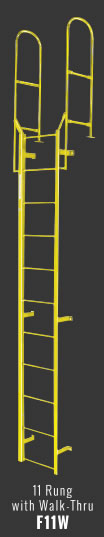

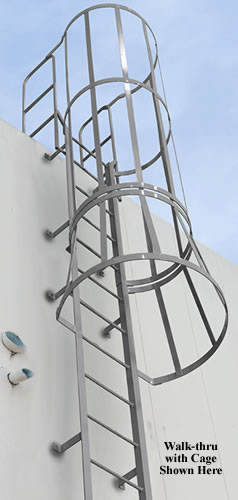

FIXED LADDER WITH
WALK-THRU HANDRAILS:		 FIXED LADDER WITH
WALK-THRU HANDRAILS
AND SAFETY CAGES:
Ladders are designed for
applications where safe landing
access is required. They are
one-piece welded assemblies for
use in applications less than 20'
in vertical height.
Designed for safe landing access
and available from 10' to 29'.
Cages and walk-thru handrails
extend 42" above landing surface.
CONSTRUCTION FEATURES: CAGE FEATURES:
Side members are 1/4"x2"x2"
   steel angle. 3/4" corrugated steel
   round climbing rungs on 12"
   centers. Stand-off brackets
   are 7". 		Safety cages are designed to
    OSHA specifications with
    flared bottom opening for
    easy entry.
Cage begins 6' 9" (7'-series M)
    from bottom rung.
Walk-thru handrails extend 42"
    above landing surface.
    Mounting brackets included.
Gray powder coat finish, yellow
    available.
Welded one-piece, gray
    powder coat finish, yellow at
    no additional charge.
PRICING FOR FIXED STEEL LADDERS - SERIES F AND
SERIES M - STD & W/CAGE
SPECIFICATIONS STANDARD WITH CAGE
OVERALL
LENGTH		 LENGTH:
TOP TO
BOTTOM
RUNG		 NO.
RUNGS		 SERIES "F"
MODEL NO.		 SHPG.
WT.		 PRICE SERIES "M"
MODEL NO.		 SERIES "F"
MODEL NO.		 SHPG.
WT.		 PRICE
3' 3" 3' 4 F4S 41 $169

 OSHA NOTE:
Althought not required by OSHA,
safety caging is offered
on 11 thru 20 rung models.
4' 3" 4' 5 F5S 50 $206
5' 3" 5' 6 F6S 58 $240
6' 3" 6' 7 F7S 66 $275
7' 3" 7' 8 F8S 75 $312
8' 3" 8' 9 F9S 87 $364
9' 3" 9' 10 F10S 95 $394
10' 3" 10' 11 F11S 104 $428 M11SC F11SC 202 $894
11' 3" 11' 12 F12S 112 $462 M12SC F12SC 223 $971
12' 3" 12' 13 F13S 120 $497 M13SC F13SC 243 $1,056
13' 3" 13' 14 F14S 129 $532 M14SC F14SC 260 $1,130
14' 3" 14' 15 F15S 137 $566 M15SC F15SC 274 $1,272
15' 3" 15' 16 F16S 149 $614 M16SC F16SC 299 $1,375
16' 3" 16' 17 F17S 158 $655 M17SC F17SC 318 $1,452
17' 3" 17' 18 F18S 166 $684 M18SC F18SC 338 $1,532
18' 3" 18' 19 F19S 174 $718 M19SC F19SC 346 $1,570
19' 3" 19' 20 F20S 183 $756 M20SC F20SC 368 $1,656
20' 3" 20' 21 - -   M21SC F21SC 388 $1,741
21' 3" 21' 22




OSHA NOTE:
Fixed ladder heights
exceeding 20' are required
to have safety caging.

 M22SC F22SC 406 $1,816
22' 3" 22' 23 M23SC F23SC 421 $1,878
23' 3" 23' 24 M24SC F24SC 442 $1,964
24' 3" 24' 25 M25SC F25SC 462 $2,048
25' 3" 25' 26 M26SC F26SC 482 $2,128
26' 3" 26' 27 M27SC F27SC 508 $2,234
27' 3" 27' 28 M28SC F28SC 528 $2,318
28' 3" 28' 29 M29SC F29SC 548 $2,483
29' 3" 29' 30 M30SC F30SC 568 $2,569
OSHA NOTE: Heights exceeding 30' require a standoff platform (see option model SP)
SHIPPING NOTE: All 15 thru 28 rung Series F models with cages ship in 2 sections. All 29 and 30 rung models ship in 3 sections.
PRICING FOR FIXED STEEL LADDERS - SERIES F AND SERIES M -
WALK-THRU RAIL & W/WALK TRHU & CAGE
OVERALL
LENGTH		 LENGTH:
TOP TO
BOTTOM
RUNG		 NO.
RUNGS		 SERIES "F"
MODEL NO.		 SHPG.
WT.		 PRICE SERIES "M"
MODEL NO.		 SERIES "F"
MODEL NO.		 SHPG.
WT.		 PRICE
6' 8" 3' 4 F4W 68 $283
 OSHA NOTE:
Althought not required by OSHA,
safety caging is offered
on 8 thru 20 rung models.
7' 8" 4' 5 F5W 77 $320
8' 8" 5' 6 F6W 85 $352
9' 8" 6' 7 F7W 93 $383
10' 8" 7' 8 F8W 102 $420   F8WC 212 $847
11' 8" 8' 9 F9W 114 $469   F9WC 224 $900
12' 8" 9' 10 F10W 122 $504   F10WC 232 $943
13' 8" 10' 11 F11W 131 $538 M11WC F11WC 241 $997
14' 8" 11' 12 F12W 139 $574 M12WC F12WC 262 $1,081
15' 8" 12' 13 F13W 147 $606 M13WC F13WC 282 $1,163
16' 8" 13' 14 F14W 158 $644 M14WC F14WC 299 $1,235
17' 8" 14' 15 F15W 166 $677 M15WC F15WC 313 $1,376
18' 8" 15' 16 F16W 178 $727 M16WC F16WC 338 $1,477
19' 8" 16' 17 F17W 185 $762 M17WC F17WC 357 $1,561
20' 8" 17' 18 F18W 193 $794 M18WC F18WC 377 $1,642
21' 8" 18' 19 F19W 201 $829 M19WC F19WC 385 $1,676
22' 8" 19' 20 F20W 210 $869 M20WC F20WC 407 $1,764
23' 8" 20' 21 - -  - M21WC F21WC 427 $1,848
24' 8" 21' 22



 OSHA NOTE:
Fixed ladder heights
exceeding 20' are
required to have
safety caging.

 M22WC F22WC 445 $1,924
25' 8" 22' 23 M23WC F23WC 460 $1,985
26' 8" 23' 24 M24WC F24WC 481 $2,068
27' 8" 24' 25 M25WC F25WC 501 $2,152
28' 8" 25' 26 M26WC F26WC 521 $2,315
29' 8" 26' 27 M27WC F27WC 547 $2,425
30' 8" 27' 28 M28WC F28WC 567 $2,513
31' 8" 28' 29 M29WC F29WC 587 $2,592
32' 8" 29' 30 M30WC F30WC 607 $2,675
OSHA NOTE: Heights exceeding 30' require a standoff platform (see option model SP)
SHIPPING NOTE: All 15 thru 25 rung Series F models with cages ship in 2 sections. All 26 thru 30 rung models ship in 3 sections.
HOT DIP GALVANIZED FINISH OR STAINLESS STEEL CONSTRUCTION CAN BE QUOTED.
ACCESSORIES
Our fixed steel ladder accessories are designed to provide an additional measure of safety or security for any fixed
steel ladder.
STANDOFF LANDING PLATFORM:
Standoff landing platforms with offset caged ladders are
required by OSHA Standard 1910.27 at 30' maximum height
intervals. These rugged, pre-engineered platforms are
constructed with left or right entries as required.
OPTION SP ................................................................ $506
Shipping wt. 165 lbs.
SECURITY CAGE ENTRY GATE:
The cage security gate is designed to prevent unauthorized
entry into the bottom of the ladder cage. Doors have
lockable hasp for complete security.
OPTION CG .......................................................... $187
Shipping wt. 20 lbs.
LG D3
SECURITY LADDER
GUARD:		 SAFETY CHAIN
ATTACHMENT:
The ladder guard is
mounted directly over the
ladder climbing rungs to
prevent unauthorized use.
It is available in either
6' or 8' lengths. The
guard has a one piece
piano hinge, and is
furnished with lock-open
and lock-closed hasps.		 The safety chain
attachment is used
on the walk-thru
handrails to prevent
accidental exit from
the top landing surface.
OPTION D3 ..... $68
OPTION LG-6 ........... $362
Shipping wt. 62 lbs.
OPTION LG-8 .......... $436
Shipping wt. 83 lbs.
