T-1HD
SERIES Heavy Duty
|
|
|
For
door openings up to 8' wide x 8' high with level driveway
|
|
| Foam
Dock Seals |
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
Construction |
|
Full
Width Header |
|
|
Bondor
foam dock seals are constructed
of the finest materials and assembled to
give you years of dependable service. |
|
Our
header pad completely covers both
sides to prevent rain from entering your
dock area along the side pads. |
|
|
|
|
|
|
|
|
|
|
Double
Layer Face |
|
Polyfoam
Core |
|
|
An
extra layer of material on the face
of the seal reinforces and protects
the foam core from damage. |
|
Insulating
polyurethane foam conforms
to the shape of the truck to form a tight
weatherseal. |
|
|
|
|
|
|
|
|
|
|
Mounting
Board |
|
Galvanized
Hardware |
|
|
Our
foam core is bonded to a kiln-dried
2" thick wood backboard for an easy,
long-lasting installation. |
|
All
Bondor Foam Seals are provided
with appropriate galvanized mounting
hardware. |
|
|
|
|
|
|
|
|
|
|
Permanent
Guide Stripe |
|
Open
Bottoms |
|
|
A
4" wide contrasting guide stripe is
sewn on. |
|
The
bottom of all vertical pads is open
to allow air to escape during compression
of the seal, reducing the amount of stress
on the vinyl fabric. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

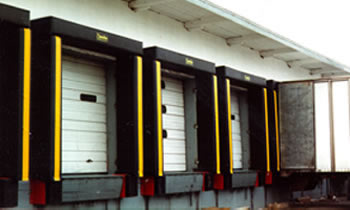

| Shown
with optional wear pleats |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
Rugged
Vinyl Cover |
|
|
A
40 oz. nylon reinforced vinyl material is used on our
heavy duty
seals. Top quality abrasion resistant 22 oz. vinyl coated
nylon fabric
is used to cover our standard seals. |
|
|
|
|
|
|
|
Color |
|
|
Standard
colors are black with a yellow guide stripe. Other
colors
available upon request.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
Top
View
|
|
|
|
|
Square
side pad cross section shown above -
recommended design for door widths 7' 4" or less.
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
Top
View
|
|
|
|
|
|
Beveled*
side pad cross section shown above -
recommended design for 8' wide doors.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Truck
Bumpers Required
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Front
View
|
|
|
Side
View
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*Beveled
side pads allow seal to be mounted with backboard
flush with door opening. Eliminates forklift damage
to backboard.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
To
order a series T-1HD Dock Seal:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 1. |
Select

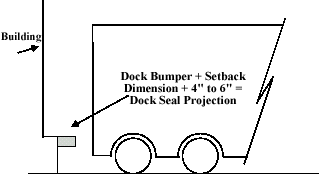

a dock seal projection by adding 4" to 6"
to your combined existing setback and dock bumper

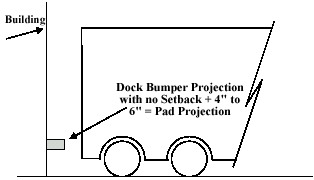

projection. (See sketch) If there is no existing bumper
or setback dimension, select the 10" projection.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 2. |
Select
square or beveled sidepads. (Beveled pads are recommended
for door openings wider than 7' 4".) |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3. |
Select
the desired model # from the price chart such as T-1HD/P10/B12-8/STD
and add the actual dock door
opening size to complete the model #. Example: T-1HD/P10/B12-8/STD/8'W
x 8'H. This model would specify
a T-1HD Dock Seal with a 10" projection with beveled
side pads 12" wide at face and 8" wide at
back with
standard vertical side pads for a door opening of 8'
W x 8' H. |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 4. |
Add
desired special options from below - wear pleats, valance
curtain and wide face header pads. |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 5. |
Remember
to order 2 dock bumpers per seal from our bumpers section
if they are not existing. |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 6. |
We
invite you to let our engineers review your dock seal
application. Complete the truck dock dimension sheet
on our
contact page and we will confirm your dock seal selection. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Table
A: Basic T-1HD Series
Pricing - use tables
B & C (shown below) for optional wear pleats
|
|
Dock Seal Projection From Building |
Side Pad Crossection |
Recommended Dock Bumper Projection (order seperately)
from Our Dock Bumper Pages |
Heavy Duty T-1HD Dock Seal
add door width x door height
to base model # below |
Heavy Duty T-1HD Dock Seal Price |
|
*10" |
Beveled |
4 1/2"- #B4510-14 |
T-1HD/P10/B12-8/STD/_ _ W x _ _ H |
$631
|
|
*10" |
Square |
4 1/2"- #B4510-14 |
T-1HD/P10/SQ-12/STD/_ _ W x _ _ H |
$631
|
|
12" |
Beveled |
6"- #B610-14 |
T-1HD/P12/B12-8/STD/_ _ W x _ _ H |
$661
|
|
12" |
Square |
6"- #B610-14 |
T-1HD/P12/SQ-12/STD/_ _ W x _ _ H |
$661
|
|
14" |
Beveled |
9" - #B910-14 |
T-1HD/P14/B12-8/STD/_ _ W x _ _ H |
$721
|
|
14" |
Square |
9" - #B910-14 |
T-1HD/P14/SQ-12/STD/_ _ W x _ _ H |
$721
|
|
16" |
Beveled |
10 1/2" - #B10510-14 |
T-1HD/P16/B12-8/STD/_ _ W x _ _ H |
$782
|
|
16" |
Square |
10 1/2" - #B10510-14 |
T-1HD/P16/SQ-12/STD/_ _ W x _ _ H |
$782
|
|
18" |
Beveled |
12" - #B1210-14 |
T-1HD/P18/B12-8/STD/_ _ W x _ _ H |
$844
|
|
18" |
Square |
12" - #B1210-14 |
T-1HD/P18/SQ-12/STD/_ _ W x _ _ H |
$844
|
|
20" |
Beveled |
14" - contact us |
T-1HD/P20/B12-8/STD/_ _ W x _ _ H |
$904
|
|
20" |
Square |
14" - contact us |
T-1HD/P20/SQ-12/STD/_ _ W x _ _ H |
$904
|
|
22" |
Beveled |
16" - contact us |
T-1HD/P22/B12-8/STD/_ _ W x _ _ H |
$965
|
|
22" |
Square |
16" - contact us |
T-1HD/P22/SQ-12/STD/_ _ W x _ _ H |
$965
|
|
| *Stock
for 8' x 8' door opening size. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
Optional
Wear Pleats/Surfaces (use charts below) |
|
|
 |
|
|
|
|
|
40
oz. wear pleat surfaces for the
full length of the side pads provide
maximum wear and abrasion
resistance. Available in 4" or 8"
exposure. |
|
|
|
|
|
|
|
NOTE:
Each seal ordered with
wear pleats includes pleats on
head pad. |
|
|
|
|
|
|
|

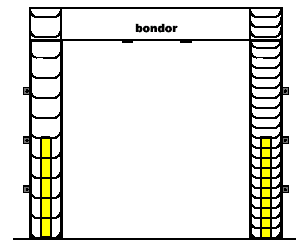

8"
pleat exposure shown
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8"
pleat exposure
shown here
|
|
4"
pleat exposure
shown here
|
|
|
|
|
|
|
|
|
|
|
|
Table
B: T-1HD Series Pricing
with Optional Wear Pleat Surface
- 8" exposure
|
|
Dock Seal Projection From Building |
Side Pad Crossection |
Recommended Dock Bumper Projection (order seperately)
from Our Dock Bumper Pages |
T-1HD Heavy Duty Seal with Optional Wear Pleat
Surface - 8" Exposure - add door width x
door height to model # below |
Price with 8" Exposure Pleat |
|
10" |
Beveled |
4 1/2"- #B4510-14 |
T-1HD/P10/B12-8/STD/WP8/_ _ W x _ _ H |
$809
|
|
10" |
Square |
4 1/2"- #B4510-14 |
T-1HD/P10/SQ-12/STD/WP8/_ _ W x _ _ H |
$809
|
|
12" |
Beveled |
6"- #B610-14 |
T-1HD/P12/B12-8/STD/WP8/_ _ W x _ _ H |
$839
|
|
12" |
Square |
6"- #B610-14 |
T-1HD/P12/SQ-12/STD/WP8/_ _ W x _ _ H |
$839
|
|
14" |
Beveled |
9" - #B910-14 |
T-1HD/P14/B12-8/STD/WP8/_ _ W x _ _ H |
$900
|
|
14" |
Square |
9" - #B910-14 |
T-1HD/P14/SQ-12/STD/WP8/_ _ W x _ _ H |
$900
|
|
16" |
Beveled |
10 1/2" - #B10510-14 |
T-1HD/P16/B12-8/STD/WP8/_ _ W x _ _ H |
$960
|
|
16" |
Square |
10 1/2" - #B10510-14 |
T-1HD/P16/SQ-12/STD/WP8/_ _ W x _ _ H |
$960
|
|
18" |
Beveled |
12" - #B1210-14 |
T-1HD/P18/B12-8/STD/WP8/_ _ W x _ _ H |
$1,021
|
|
18" |
Square |
12" - #B1210-14 |
T-1HD/P18/SQ-12/STD/WP8/_ _ W x _ _ H |
$1,021
|
|
20" |
Beveled |
14" - contact us |
T-1HD/P20/B12-8/STD/WP8/_ _ W x _ _ H |
$1,082
|
|
20" |
Square |
14" - contact us |
T-1HD/P20/SQ-12/STD/WP8/_ _ W x _ _ H |
$1,082
|
|
22" |
Beveled |
16" - contact us |
T-1HD/P22/B12-8/STD/WP8/_ _ W x _ _ H |
$1,142
|
|
22" |
Square |
16" - contact us |
T-1HD/P22/SQ-12/STD/WP8/_ _ W x _ _ H |
$1,142
|
|
|
Table
C: T-1HD Series Pricing
with Optional Wear Pleat Surface
- 4" exposure
|
|
Dock Seal Projection From Building |
Side Pad Crossection |
Recommended Dock Bumper Projection (order seperately)
from Our Dock Bumper Pages |
T-1HD Heavy Duty Seal with Optional Wear Pleat
Surface 4" Exposure - add door width x door
height to model # below |
Price with 4" Exposure Pleat |
|
10" |
Beveled |
4 1/2"- #B4510-14 |
T-1HD/P10/B12-8/STD/WP4/_ _ W x _ _ H |
$904
|
|
10" |
Square |
4 1/2"- #B4510-14 |
T-1HD/P10/SQ-12/STD/WP4/_ _ W x _ _ H |
$904
|
|
12" |
Beveled |
6"- #B610-14 |
T-1HD/P12/B12-8/STD/WP4/_ _ W x _ _ H |
$935
|
|
12" |
Square |
6"- #B610-14 |
T-1HD/P12/SQ-12/STD/WP4/_ _ W x _ _ H |
$935
|
|
14" |
Beveled |
9" - #B910-14 |
T-1HD/P14/B12-8/STD/WP4/_ _ W x _ _ H |
$995
|
|
14" |
Square |
9" - #B910-14 |
T-1HD/P14/SQ-12/STD/WP4/_ _ W x _ _ H |
$995
|
|
16" |
Beveled |
10 1/2" - #B10510-14 |
T-1HD/P16/B12-8/STD/WP4/_ _ W x _ _ H |
$1,056
|
|
16" |
Square |
10 1/2" - #B10510-14 |
T-1HD/P16/SQ-12/STD/WP4/_ _ W x _ _ H |
$1,056
|
|
18" |
Beveled |
12" - #B1210-14 |
T-1HD/P18/B12-8/STD/WP4/_ _ W x _ _ H |
$1,116
|
|
18" |
Square |
12" - #B1210-14 |
T-1HD/P18/SQ-12/STD/WP4/_ _ W x _ _ H |
$1,116
|
|
20" |
Beveled |
14" - contact us |
T-1HD/P20/B12-8/STD/WP4/_ _ W x _ _ H |
$1,177
|
|
20" |
Square |
14" - contact us |
T-1HD/P20/SQ-12/STD/WP4/_ _ W x _ _ H |
$1,177
|
|
22" |
Beveled |
16" - contact us |
T-1HD/P22/B12-8/STD/WP4/_ _ W x _ _ H |
$1,238
|
|
22" |
Square |
16" - contact us |
T-1HD/P22/SQ-12/STD/WP4/_ _ W x _ _ H |
$1,238
|
|
| SPECIAL
OPTIONS: |
|
|
|
|
|
|
|
|
| To
order any of the special options add the model # suffix
desired to the base model # selected from the T-1HD
Series Dock Seal charts above. Example: T-1HD/P10/B12-8/STD/8'W
x 8'H-WFHP18 |
|
|
|
|
|
 |
|
|
|
Weighted
Valance Curtain reduces top
gap when low trucks are frequently docked
- curtain hangs between side pads. |
|
|
|
|
|
|
|
|
|
|
Model Number
Suffix |
Drop |
Price
|
|
-VC15 |
15" drop |
$83
|
|
-VC30 |
30" drop |
$116
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
Wide
Face Header Pad (wider than STD
12") - For docks which service a broader
range of truck heights. |
|
|
|
|
|
|
|
|
|
|
|
Model Number Suffix |
Header Pad Face Width |
Price |
|
-WFHP14 |
14" |
$110
|
|
-WFHP16 |
16" |
$119
|
|
WFHP18 |
18" |
$125
|
|
|
|
|
|
|
|
|
|
|
|
| ARCHITECTURAL
SPECIFICATIONS - Model T-1HD Heavy Duty Foam Seal |
|
| Truck
Dock Seals |
|
Truck
dock seals shall be as manufactured by the Bondor Division
of FS Industries, Providence, RI, to fit a door opening
of
8' wide x 8' high. |
|
| Construction |
|
|
Pads to
have a polyurethane foam core bonded to a 2"
x 12" kiln dried wood backboard to give a finished
projection of
______________. Side pads to have 4" wide contrasting
guide stripe sewn on. Bottom of pads to have 3"
upward taper to
prevent pinching between truck and bumpers. Bottom
of pads to be open to allow for escape of air during
compression and
to prevent condensation. Header pad shall be sized
to fit over (not between) side pads to prevent water
from entering alongthe side pads. Header to breathe
through grommets on underside of pad.
|
|
| Cover
Material |
|
| Pads
to be completely wrapped with 40 oz. nylon reinforced
vinyl material, double layer on face of seal, no stitching
or seams. |
|
