WELDING
STRIP PROTECTION
|
|
|
|
 |
|

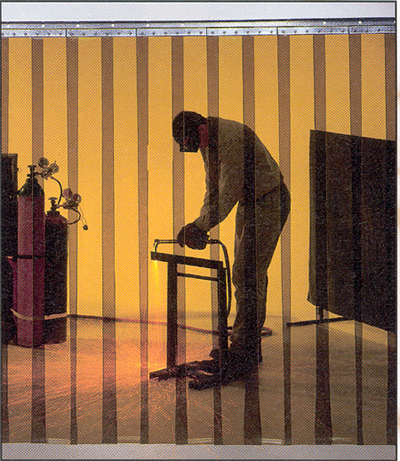

An
ideal barrier for large welding
enclosures or where continuous straight
runs of barrier protection are needed. |
|
|
|
»
Provides protection from welding flash
and spatter.
» Allows easy access of personnel and
equipment into the welding area.
» Permits safe monitoring of welding
activities.
|
|
|
|
The
strips are 8" wide x .080" thick and are
mounted with a 50% overlap to assure adequate
protection*. Bronze tinted PVC filters ultra-violet
radiation associated with welding. Curtains meet
CFM requirements for flame resistance.
Welding Strip Curtains are supplied complete with
specially formulated bronze color PVC strip and
mounting hardware. |
|
|
|
*Note:
The use of this product is not a replacement for
the personal eye protection that is required for sustained
viewing in a welding area. |
|
|
|
|
|
INSTALLATION
|
|
 |
|
Welding
Strips Curtain Systems feature universal hardware for
mounting to a wall, ceiling or for suspending for over-
head beams. The wide variety of mounting methods and
heavy duty construction make FLEX-VUE stationary hardware
the best value in the industry. 14 gauge galvanized
steel construction. Permanent 1/4" studs, reinforcement
plates and
locknuts. Pre-drilled holes for mounting or suspension.
FLEX-VUE Hardware mounts three ways. |
|
|
Prices
|
|
|
|
Model No. |
W x H |
Wt (lbs.) |
Price |
|
Standard Size Welding Strip Doors* |
| 8"
Strip - 50% O/L |
|
17-230307G |
3' x 7' |
20 |
$104 |
|
17-230308G |
3' x 8' |
28 |
$115 |
|
17-230407G |
4' x 7' |
27 |
$139 |
|
17-230408G |
4' x 8' |
30 |
$154 |
|
17-230507G |
5' x 7' |
36 |
$173 |
|
17-230508G |
5' x 8' |
36 |
$192 |
|
17-230607G |
6' x 7' |
43 |
$208 |
|
17-230608G |
6' x 8' |
43 |
$231 |
|
17-230808G |
8' x 8' |
55 |
$308 |
| 12"
Strip - 67% O/L |
|
17-330808G |
8' x 8' |
90 |
$481 |
|
17-330809G |
8' x 9' |
99 |
$533 |
|
17-330810G |
8' x 10' |
108 |
$585 |
|
17-331010G |
10' x 10' |
134 |
$731 |
|
17-331012G |
10' x 12' |
155 |
$861 |
|
17-331210G |
12' x 10' |
160 |
$877 |
|
17-331212G |
12' x 12' |
187 |
$1,033 |
|
17-331214G |
12' x 14' |
214 |
$1,189 |
|
Custom Size Welding Strip Doors* |
|
Model No. |
Height |
Wt (lbs.) |
Price (LF) |
|
8" Strip - 50% O/L |
|
|
|
|
17-230106G |
6' |
5.70 |
$31 |
|
17-230107G |
7' |
6.50 |
$35 |
|
17-230108G |
8' |
7.00 |
$38 |
|
17-230109G |
9' |
7.75 |
$42 |
|
17-230110G |
10' |
8.50 |
$46 |
|
17-230111G |
11' |
9.25 |
$50 |
| 12"
Strip - 67% O/L |
|
17-330108G |
8' |
8.00 |
$60 |
|
17-330109G |
9' |
10.00 |
$67 |
|
17330110G |
10' |
11.00 |
$73 |
|
17-330111G |
11' |
12.00 |
$80 |
|
17-330112G |
12' |
13.00 |
$86 |
|
|
|
|
|
* The
use of this product is not a replacement for personal
eye protection that is required for sustained viewing
in welding.
****G
= Galvanized
|
|
