CLEAR-VALU® IMPACDOR®

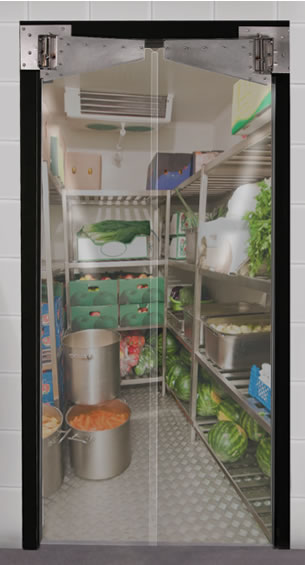

The Clear-Valu® ImpacDor® is the strip door alternative. Two crystal
clear flexible PVC panels for walk-in coolers and freezers with a center
overlap create an energy tight seal.
Walk-In Coolers
& Freezers

Food Service &
Food Processing
Facilities

Pharmaceutical &
Laboratories

Personnel Traffic
Clear-Valu® swinging doors are easy
to install and easy to use. They open
with minimum force and close
automatically in seconds. The closing
speed is fully adjustable and the
polished stainless steel Clear-Valu®
hinges are guaranteed not to rust or
corrode. Crystal clear panels are
available in both cooler and freezer
formulation in .080” and .120”
thickness. Panels are packaged flat,
not rolled, to insure straight hanging
for a tight seal. In addition, Clear-
Valu® doors can be field adjusted
and modified for a perfect fit. The

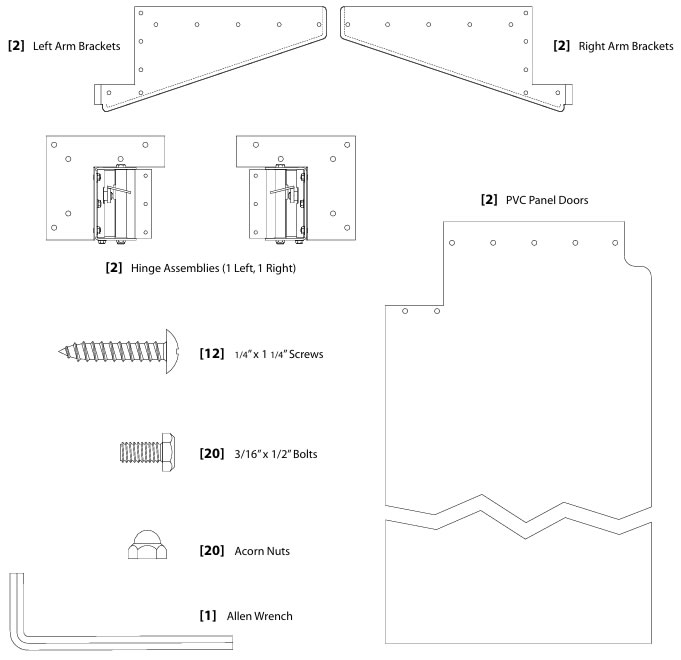

complete Clear-Valu® door includes
mounting hardware.
clear-valu impacdor
Features:
• Tight seal & economical
   price
• Crystal clear panels for
   cooler or freezer use
• Stainless steel hinges
• Easy to open-closes
   automatically
• Adjustable closing speed
• Includes mounting
   hardware ready to install
• Easy to replace panels
traffic doors
hinges
NEW! Improved Hinge
Stainless steel easy-to-open
hinges close automatically in
seconds Can be flush mounted
or in-jamb mounted
LIFETIME WARRANTY on
Clear-Valu® Hinges

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click a Part No. of the item you wish to purchase.

PRICING
Part # W x H Panel Thickness and Formulation Price
3'0" x 6'6" .080, Cooler $515
3'0" x 6'6" .080", Freezer $538
3'0" x 6'6" .120", Cooler $562
3'0" x 6'6" .120", Freezer $584
3'0" x 7'0" .080", Cooler $527
3'0" x 7'0" .080", Freezer $550
3'0" x 7'0" .120", Cooler $572
3'0" x 7'0" .120", Freezer $594
*Call us for part numbers not shown, replacement part availability and pricing.

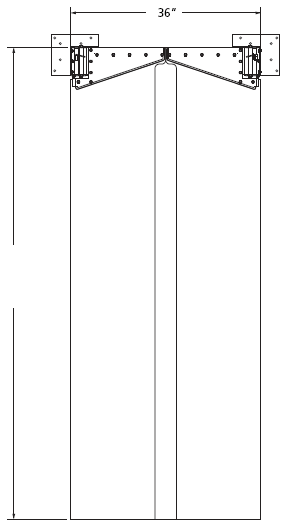

IMPACDOR® CLEAR-VALU SPECS
DOOR FEATURES & OPTIONS
impacdor clear valu specs
PANEL
.080” cooler is standard
[    ] .080” low-temp freezer
[    ] .120” cooler
[    ] .120” low-temp freezer
HINGE
Stainless steel hinge with adjustable single
compression spring. Swings on even plane
180° .
STANDARD HEIGHTS
[    ] 6’ - 6”
[    ] 7’ - 0”
DOOR WIDTH
36” wide door with 3/4” overlap.

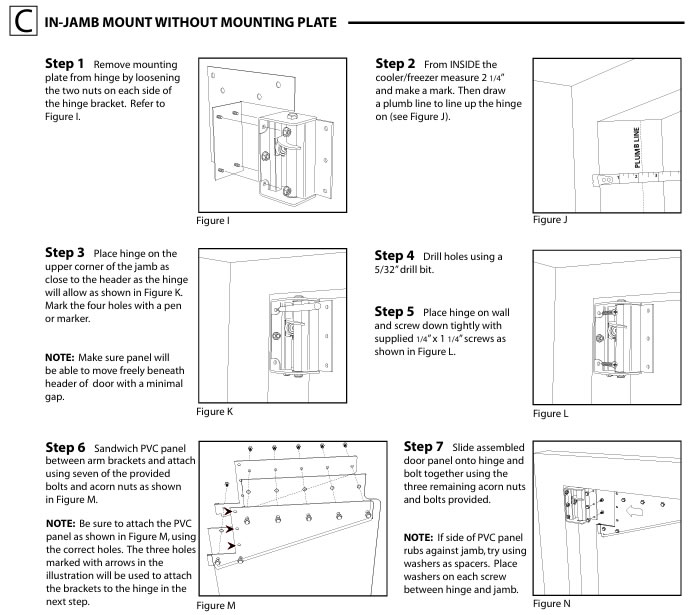

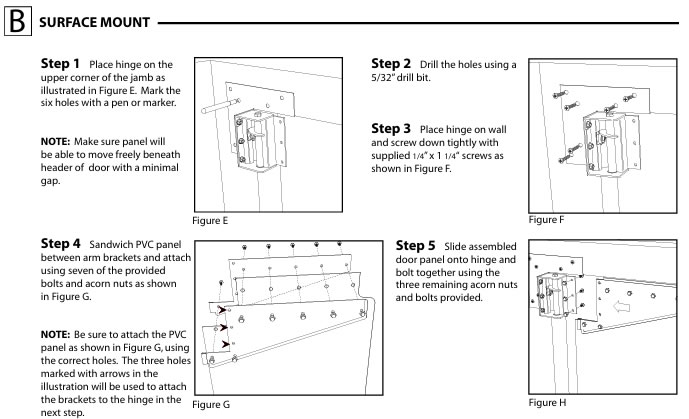

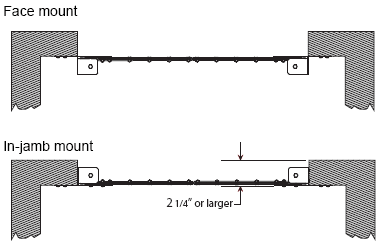

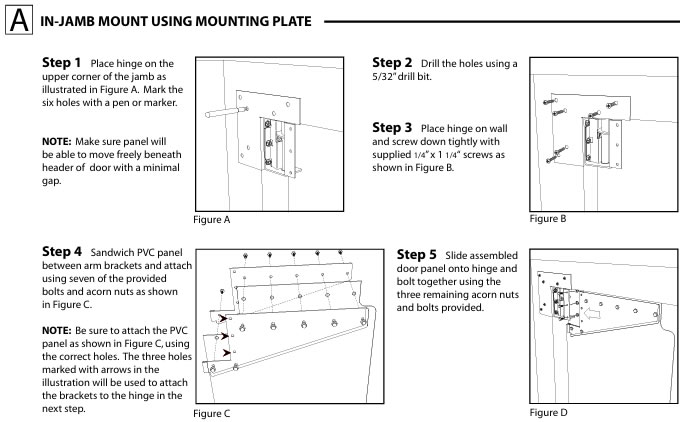

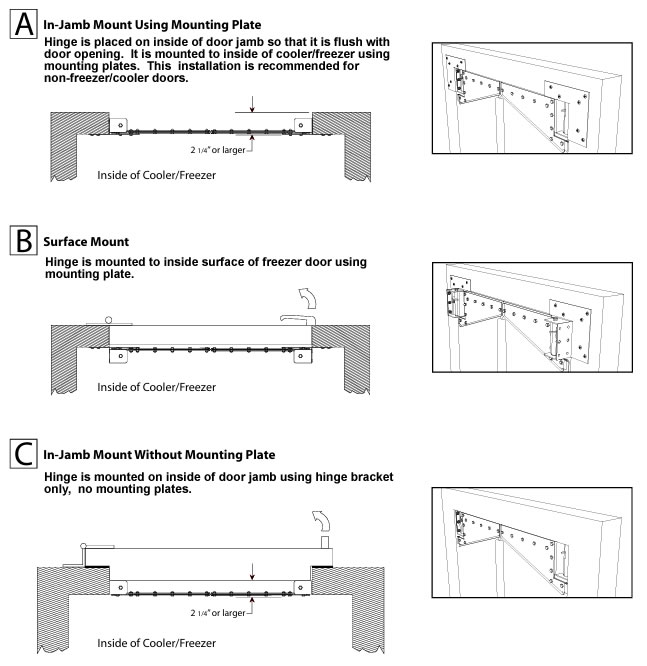

HINGE MOUNTING OPTIONS
hinge mounting options

Clear-Valu® ImpacDor® Installation Instructions
TOOLS NEEDED
• Pen or Pencil to Mark Holes
Diagram 1
• Drill
Hinge Bracket
• Step Stool or Ladder
hinge bracket
• Utility Knife to Cut Strips
1. Center hinge bracket ¾” from top of opening.
2. Using hinge bracket as a template (Diagram 1), mark the
mounting holes and drill accordingly for the type of fasteners
(not supplied) to be used. Make sure that the hinge bracket
is plumb, square and that the offset arm assembly is level
and horizontal to the floor. Shim as needed. Even though the
hinge brackets are designed for bolts, the arm assemblies
may be permanently welded to your doorframe
3. Repeat steps 1 and 2 for the remaining offset arm assembly.
Diagram 2
4. Attach clear PVC door panels to the offset arm
Attaching Door Panels
assemblies by sandwiching the door panel between the arm
plate and offset arm assembly using the 9/32” x 3/4” bolts
and nuts provided in the hardware pack (Diagram 2).
Tighten securely.
door panels
5. Your PVC panels may be trimmed if necessary by using a
straight edge and a utility knife.
