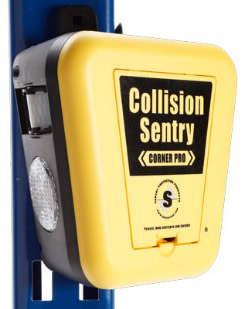

Collision Sentry® Corner Pro

Making Noise in Collision Awareness
Blind corner intersections are a prime spot for accidents in any industrial setting – accidents that can result in
damage to equipment, the facility and most importantly to people. Collision Sentry Corner Pro works to
prevent accidents at blind corners by sending both an audio and visual alert to warn of approaching traffic.
Collision Sentry Corner Pro helps create a safer working environment in areas where forklift traffic and
pedestrian traffic intersect.
Collision Sentry Collision Pro
Blind corners and intersections are a common hazard in most industrial
settings. The Collision Sentry Corner Pro warning system helps lessen
these hazards.

The addition of the Collision Sentry
Corner Pro system can:

• Protect people from injury
• Prevent equipment damage
• Prevent damage to the facility
• Increase and maintain productivity by avoiding delays due to accidents

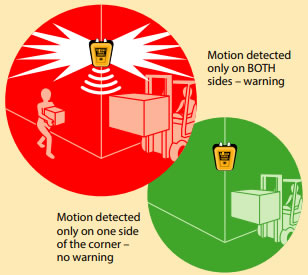

The Collision Sentry Corner Pro sends a warning
ONLY when it senses movement in both detection
zones; motion on both sides of the blind corner.
Under those conditions, the Collision Sentry Corner
Pro flashes in both directions and sounds an audible
warning, providing enough time for corrective action.

Detection Zone
The Collision Sentry Advantage
Audio Warning
• Loud enough to be heard within the corner zone; pitch sets it apart from
   other background noise
• Volume can be adjusted (high/low) or turned off
• Sounds ONLY when motion is detected on both sides of the corner
• Synchronized with light flash to reinforce warning

Visual Warning

• Flashes ONLY when motion is detected on both sides of the corner
• LED lights angled; increasing light's intensity and optimizing visibility
• Beam focused toward areas where it is best seen
• Lens concentrates and increases beam’s intensity

Simple Installation (see below for installation instructions)
• Deploys immediately, portable, compact and lightweight
• Integrated, recessed magnet mounts easily “snap on” to racking,
   maintaining a secure, tight fit.
• Integrated mounting points for mounting the unit to non-magnetic
   surfaces
• Optimal installation height is 7-9 feet on the upright

Passive Infrared Motion Sensors
• Detection zone 20-25" in each direction
• Alert sent in ample time to take corrective action
• Pre-set and ready to use

Self-Powered
• Standard D-cell batteries (included)
• Blue light, beeping low battery indicator
• Battery life depends on usage, but lasts a minimum of 12 months

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.


Collision Sentry Prices
Model No.
Description
Weight
Price
Warning System with Audio - Height of 7"
3 lbs
$240.15
Pack of 8
24 lbs
$1,922.09
Installation Instructions
Inspect your product for any visible signs of damage.
To activate the Collision Sentry Corner Pro, pull out the plastic battery
tab located inside the unit. Remove the door on the front of the unit,
pull the tab and replace the door. This activates the three (3) “D” cell
batteries that are included with each unit. The LED lights will begin
blinking as the device becomes oriented to the environment. During
this warm-up period, the blue low battery indicator also flashes.

Note:
Always activate the unit prior to installation. Pull the tab, close the
door and the install the unit to the upright.
The ideal placement for the unit is at a height between 7' and 9' (2-2.75 m). Install with the mounting tabs at the top.
Use the integrated magnets on the back to "snap" the unit to a metallic
corner or rack.
The included nylon tether provides extra security when mounting the unit
using the magnets. Using the tether is optional but recommended.
Use the integrated mounting tabs to install the unit directly to nonmetallic
surfaces.
The product needs about 20 seconds to acclimate to the new environment
and "learn" its new surroundings. During this warm-up, the warning lights
will flash. The lights will go solid red for four seconds at the end of the
warm-up period. This indicates the product is ready to use.
Collision Sentry Corner Pro ships with the audio alarm activated
and set to the highest volume. This alarm can be adjusted using the
switches found inside the unit and located below the battery
compartment. (See illustration). There are two switches used for
adjusting the volume – a high/low switch and an off/on switch.
1. Remove the door on the front of the unit.
2. Alarm switches are located below the battery compartment.
3. Adjust the switches to the desired setting.
4. Reinstall battery door.
5. Unit is now ready for use.
