CONCRETE CONE BOLLARDS

TF6071, TF6072, TF6080
BOLLARDS Made of all shapes and sizes offer dependable solutions for security, traffic flow and numerous
other applications – while enhancing the aesthetic appeal of any project. Whether spherical, cylindrical or
mimicking the contour of natural stone, our bollards are constructed of steel rebar encased in concrete to
provide superior strength and protection. Choose from Standard Exposed, Weatherstone and Acid Wash finishes.

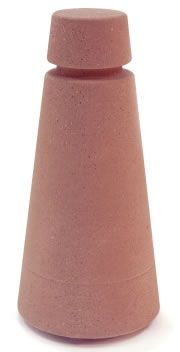

Slightly shorter version of the TF6072 bollard, sleek,
modern application to your landscape designs.

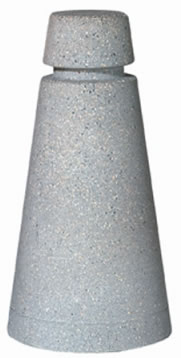

Sleek modern look for your landscape designs,
a slightly shorter version of the TF6071
.
Tall, sturdy bollard for your
traffic control or design needs.

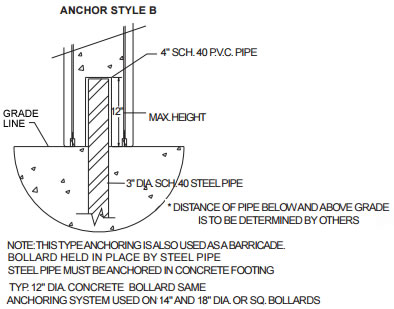

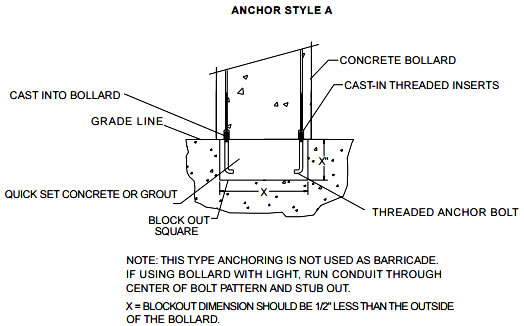

Mounting options: A or B
TF6071
Material: Concrete
TF6072
TF6080
Shape: Circle

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.


PRICING FOR STANDARD COLORS
Model No.
Size
Weight
Price
9" x 18" x 34"
460 lbs
$376.90
9" x 18" x 38"
560 lbs
$400.00
10 1/4 " x 23 3/4" x 42 1/8"
880 lbs
$536.90
Available Colors

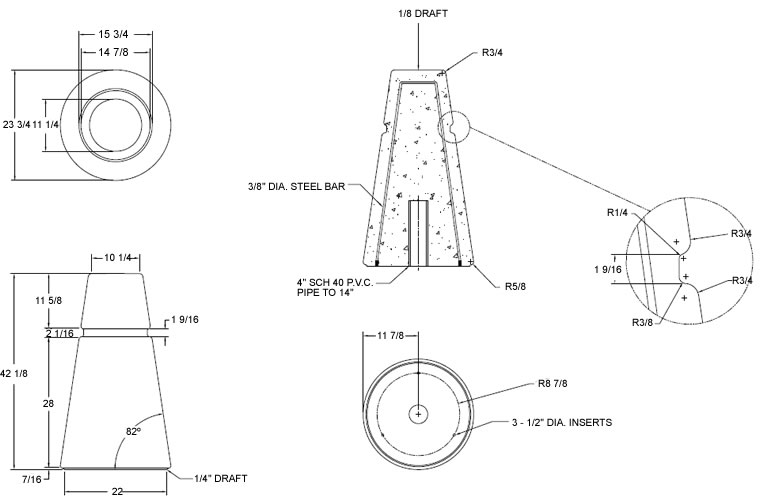

DRAWINGS TF6080

Bollard installation

SPECIFICATIONS
1.1 SUMMARY
   A. Section includes: Furnish Precast Concrete indicated on drawings or specified herein.
1.2 REFERENCES
   A. American Society for Testing & Material
        1. ASTM C33     2. ASTM C150      3. ASTM C31
1.5 SUBMITTALS
   A. Submit product data, shop drawings and samples.
        1. Product Data: Manufacturer's specifications and technical data edited specifically for proposed system,
            including the following specific information:
            a. Detailed specification of construction fabrication.
            b. Manufacturer's installation instructions
            c. Maintenance literature
            d. Product warranty
        2. Shop Drawings: Indicate pertinent dimensions, general construction, component connections
            anchoring methods, hardware and installation procedures.
        3. Samples as requested by Architect.
1.6 QUALITY ASSURANCE
   A. Qualifications of Manufacturer: Manufacturer to be prequalified by specifier prior to bidding. Failure to comply
        will result in disqualification of bid. Manufacturer to have at least five years experience in the manufacturer of
        precast concrete bollards field proven for at least five years.
1.10 WARRANTY
   Manufacturer shall submit a written warranty for precast products for the period of two years upon acceptance of
   products.
2.2 MATERIALS
   A. Portland Cement: ASTM C150 specifications for Portland Cement.
   B. Aggregates: All aggregates to meet ASTM C33 specifications, to be cleaned of foreign matter and properly
       graded to size.
   C. Coloring: Pigments used shall be inorganic, resistant to alkalinity and used as per manufacturers
        recommendations.
