4" x 4" MEDIUM DUTY MACHINE GUARDS

Use these rigid frames to guard machines and areas requiring a wider
protection area than that which is provided by single bollards.
Choose from various lengths and heights.
machine guard barroers   * 4" x 4" x 3/16" wall square tube
   construction
* All welded with prepunched 8" x 8"
   x 1/2" footplates
* Attractive safety yellow standard finish
   (blue and gray also available)
* Optional floor fasteners available
* Custom sizes and designs available
protection guards
heavy duty machine guards
bollards
Model
MG4236-MD
single bollards machine bollards
Model
MG1648-MD
traffic protection guards bollard protection
Keep errant fork lift traffic away
from personnel traffic
Protect equipment and operations
from production traffic
anchor bolt kits

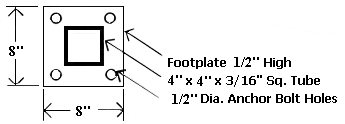

footplate
cross section
IRPFK ANCHOR BOLT KIT
FOOTPLATE
CROSS SECTION VIEW
guards machine guard

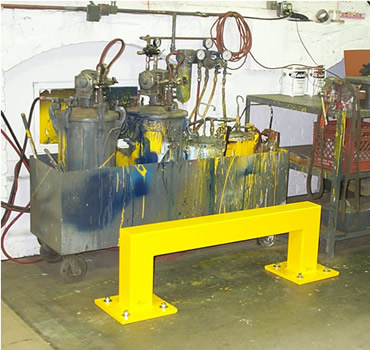

Sensitive paint area kept safe and clear of
rolling carts.
Keep critical access areas clear and safe.
bollards

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.

PRICING
Model No.
Height
Length*
Weight
Price
9"
24"
46 lbs
$405
9"
36"
56 lbs
$434
9"
48"
65 lbs
$463
16"
24"
57 lbs
$439
16"
36"
67 lbs
$468
16"
48"
76 lbs
$497
24"
24"
70 lbs
$478
24"
36"
80 lbs
$507
24"
48"
89 lbs
$536
36"
24"
89 lbs
$536
36"
36"
99 lbs
$565
36"
48"
108 lbs
$594
42"
24"
98 lbs
$565
42"
36"
108 lbs
$594
42"
48"
117 lbs
$624
48"
24"
107 lbs
$594
48"
36"
117 lbs
$624
48"
48"
126 lbs
$653
Fastener Kit: (4) 1/2" x 3" Sleeve Anchors *Qty 2 Required Per Guard
$7.50

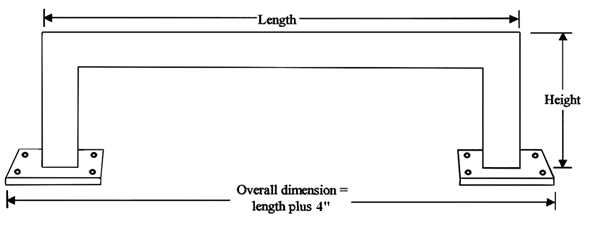

*Add 4" to length dimension to determine overall dimension out to out of baseplates.
