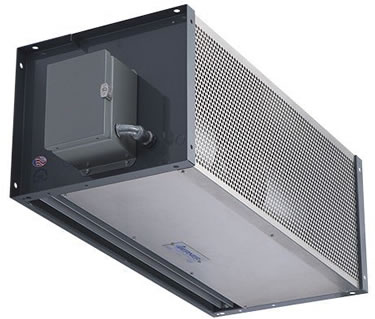

INDUSTRIAL
DIRECT DRIVE 14
Air Curtains (Unheated) |
SERIES
#IDC14 |
|
|
|
|
 |
|
For
mounting heights to 14' (environmental
separation) and 12' (insect control). |
|
|
|
|
Available
in single lengths from 8' to 12'. Durable,
all welded construction with gray powder-coated
exterior and mill aluminum inlet panel. Designed to
be simple to install, operate and maintain. |
|
|
|
|
|
• Used to
keep temperatures stable and flying
insects out when the doors are open.
• Engineered to perform and built to last
• Simple to install, operate, and maintain
• Made in U.S.A. |
|
|
|
|
 |
|
 |
|
| ALL
IDC14 SERIES (UNHEATED TYPE) |
•
1 horsepower open drip proof (ODP) single speed
motor(s) w/ double extended shafts
• 120/1/60; 208/1/60; 240/1/60; 208/3/60; 240/3/60;
480/3/60 available power supplies
• Galvanized steel, forward curved, direct driven
centrifugal blower wheels in matched blower housing
• Blower modules factory assembled on 16 gauge
aluminized steel base plate (one per motor)
• Control panel factory installed on left hand end plate
(standard), right hand or remote available |
|
•
Perforated mil aluminum air inlet screen removable
for maintenance
• 3.5" wide air outlet nozzle with (2) airfoil aluminum air
directional vanes fully adjustable +/- 20° of centerline
• (4) ½" mounting holes on top end flanges of air
curtain cabinet
• UL (indoor & outdoor) CUL (indoor only)
• AMCA certified air performance |
|
• Manufactured
in the USA
• 5 year limited parts warranty |
•
Motor(s) factory wired to control panel (standard)
• Welded 16 gauge aluminized steel base frame
with gray finish
• Mil aluminum top and bottom access panels

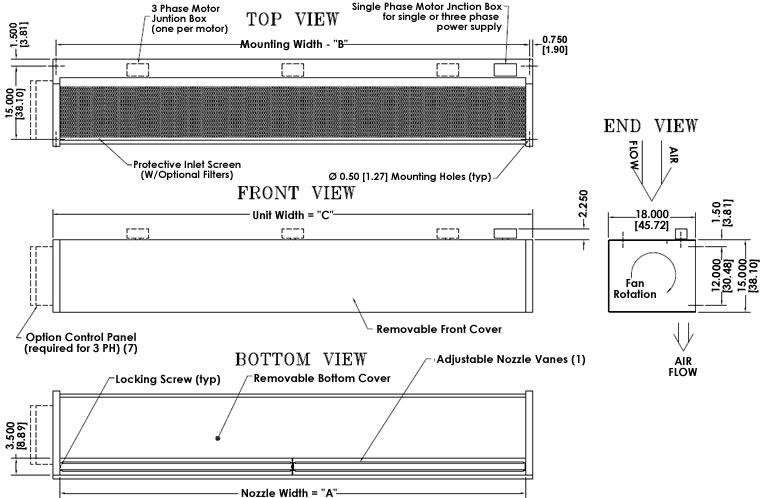

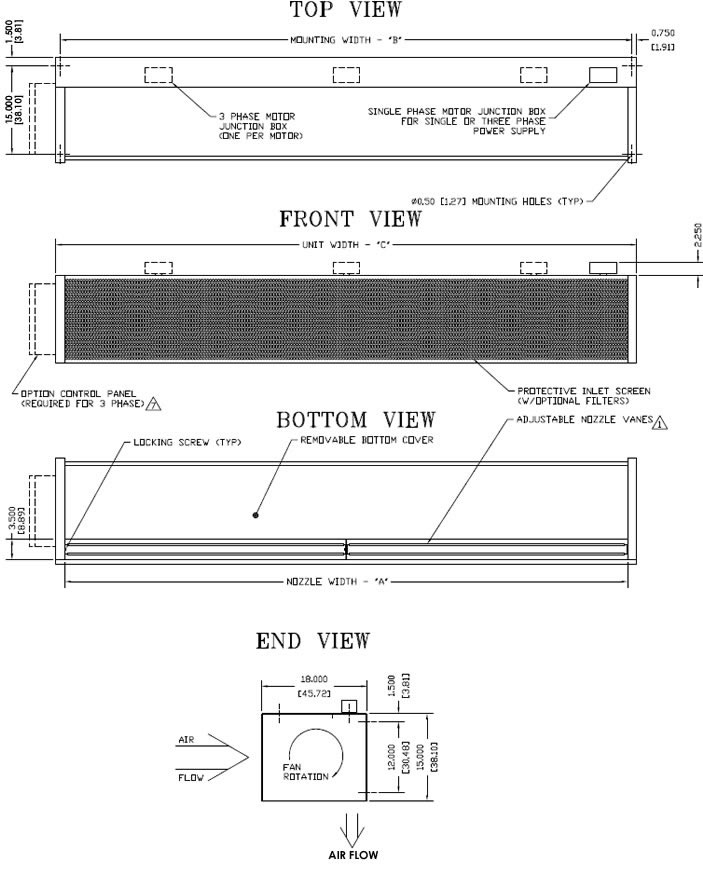

• 15" high x 18" deep cabinet |
|
|
|

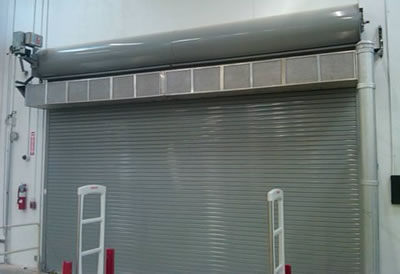

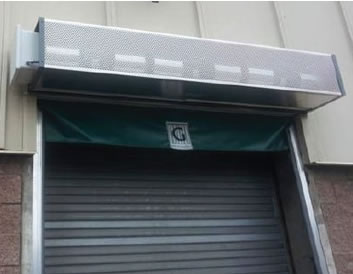

Installation
& Mounting |
|
Simple to
install, operate & maintain |
|
|
|
|
|
|
|
| SPECIFICATIONS |
|
|
|
SINGLE
& THREE PHASE CONTROL PANEL
- ALL OVERHEAD DOOR TYPES EXCEPT
FOR HIGH SPEED FABRIC DOOR |
|
SINGLE & THREE
PHASE CONTROL PANEL
- HIGH SPEED FABRIC DOOR |
|
|
|
1.
120/1/60; 208/1/60; 240/1/60
2. 208/3/60; 240/3/60; 480/3/60 |
|
|
1.
120/1/60; 208/1/60; 240/1/60
2. 208/3/60; 240/3/60; 480/3/60 |
|
|
|
|
•
NEMA 4/12 Rated Industrial Enclosure
• Motor Contactor (C. R. M.)
• Fusing (as required)
• Transformer with Fused Primary and 24V Secondary
Control Circuit
• Time delay (factory set for a one minute delay, field
adjustable)
• Terminal Strip
• U.L. Listed
• Manufactured in the USA
• Factory mounted/wired left hand end plate (standard) |
|
|
•
NEMA 4/12 Rated Industrial Enclosure
• Motor Contactor (C. R. M.)
• Fusing (as required)
• Transformer with Fused Primary and 24V Secondary
Control Circuit
• Terminal Strip
• U.L. Listed
• Manufactured in the USA
• Factory mounted/wired left hand end plate (standard) |
|
|
|
|
The three required pieces of equipment for all overhead door
types except for installation above high speed fabric
doors are as follows: |
|
|
|
|
|
|
1.
Unheated air curtain
2. Control panel w/ 24V control (-24 at the end of the control panel part
number). |
|
|
a.
The standard is factory mounted/wired on the left hand end plate of the
air curtain.
Optional factory mounted/wired on the right hand end
plate or remote mounted.
b. To allow for access into the control panel, a minimum clearance of 24"
is required on
the side of the opening where the control panel
is installed (left or right hand end plate of the air curtain)
c. If factory mounted extension brackets are purchased, the control panel must be remote mounted
d. When ordering, the location of the control panel must be noted on the
order
° Left hand end plate (standard)
° Right hand end plate
° Remote
e. When extension brackets are supplied, control panel must be remote mounted. |
|
|
|
|
|
3.
24V heavy duty magnetic reed door
limit switch (part number
9503MRS1F2-SS-HD) |
 |
|
|
|
|
|
|
|
|
|
|
|
|
| The two required pieces of equipment for all installations above high speed fabric doors are as follows: |
|
|
|
|
|
|
|
|
1.
Unheated air curtain
2. Control panel w/ 24V control & time delay (-24-TD at the end of the
control panel part number) |
|
|
|
|
a.
The standard is factory mounted/wired on the left hand end plate of the
air curtain.
Optional factory mounted/wired on the right hand
end plate or remote mounted.
b. To allow for access into the control panel, a minimum clearance of 24"
is required on the
side of the opening where the control panel is
installed (left or right hand end plate of the air curtain).
c. If factory mounted extension brackets are purchased, the control panel must be remote mounted.
d When ordering, the location of the control panel must be noted on the
order |
|
|
|
°
Left hand end plate (standard)
° Right hand end plate
° Remote |
|
|
|
|
e.
When extension brackets are supplied, control panel must be remote mounted. |
|
|
|
|
|
|
|
|
Note:
The 24V heavy duty magnetic reed door limit switch cannot be used when installing
an air curtain
above a high speed fabric door. The air curtain must be activated through
a contact in the high speed
fabric door control panel. |
|
 |
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click a Price of the item you wish to purchase. |
|
|
|
|
|
|

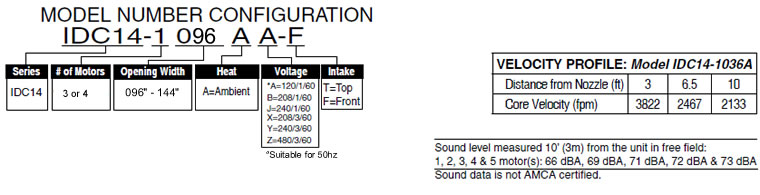

| When
ordering please specify the following: |
Location
of Panel: Standard: Factory installed left hand end plate or remote
end plate
Optional: Right hand end plate or remote mounted |
| Air
intake location: Standard - (F) Front, Optional -(T) Top |
|
| Voltage: 120/1/60, 208/1/60, 240/1/60, 208/3/60, 240/3/60, 480/3/60 |
|
|
PRICING
FOR IDC14 SERIES AIR CURTAINS (UNHEATED) |
Mounting
Ht. (ft.) |
MODEL |
Nozzle
Width
(in) |
Max
Vel. at
Nozzle
(fpm) |
Avg.
Outlet
Vel.
(fpm) |
Air
Volume
(cfm) |
Outlet
Vel.
Uniformity |
Power
Rating
(kW) |
Motor(s)
@ hp |
Ship
Wt.
(lbs) |
PRICE |
120/208/
240/60V
1PH |
208/
240/
480/60V
3PH |
8'
DOOR WIDTH |
11 |
IDC14-3096A |
99 |
7,567 |
2,987 |
6,970 |
87% |
3.19 |
3
@ 1 |
311 |
|
|
12 |
IDC14-3096A |
|
|
13 |
IDC14-3096A |
|
|
14 |
IDC14-3096A |
|
|
9'
DOOR WIDTH |
11 |
IDC14-3108A |
108 |
7,567 |
2,738 |
7,188 |
87% |
3.36 |
3
@ 1 |
364 |
|
|
12 |
IDC14-3108A |
|
|
13 |
IDC14-3108A |
|
|
14 |
IDC14-3108A |
|
|
10'
DOOR WIDTH |
11 |
IDC14-3120A |
117 |
7,040 |
2,526 |
7,368 |
81% |
3.36 |
3
@ 1 |
384 |
|
|
12 |
IDC14-3120A |
|
|
13 |
IDC14-3120A |
|
|
14 |
IDC14-3120A |
|
|
12'
DOOR WIDTH |
11 |
IDC14-4144A |
144 |
7,567 |
2,738 |
9,584 |
87% |
4.48 |
4
@ 1 |
473 |
|
|
12 |
IDC14-4144A |
|
|
13 |
IDC14-4144A |
|
|
14 |
IDC14-4144A |
|
|
|
| See
electrical performance chart below for amp draws/total load requirements. |
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
|
|
|
|
REQUIRED
EQUIPMENT for 120/1/60V Air Curtains |
Model
No. |
Description |
Price |
|
CONTROL
PANEL W/24V 120/1/60 VOLTAGE NOTE 1 |
$782 |
|
CONTROL
PANEL W/24V & TIME
DELAY 120/1/60 VOLTAGE NOTE 3 |
$949 |
|
HEAVY
DUTY 24V MAG REED DOOR SWITCH FIELD INSTALLED/WIRED
ONE PER OPENING (NOT AVAILABLE WHEN AIR CURTAIN IS INSTALLED
ABOVE HIGH SPEED DOORS) |
$73 |
REQUIRED
EQUIPMENT for 208-240V 1 PH Air Curtains
|
Model
No. |
Description |
Price |
|
CONTROL
PANEL W/24V 208-240 1PH 60 VOLTAGE NOTE 1 |
$782 |
|
CONTROL
PANEL W/24V & TIME DELAY 208-240 1PH 60 VOLTAGE NOTE 3 |
$949 |
REQUIRED
EQUIPMENT for 208-240 3PH 60V Air Curtains |
Model
No. |
Description |
Price |
|
CONTROL
PANEL W/24V 208-240 3PH 60 VOLTAGE NOTE 1 |
$955 |
|
CONTROL
PANEL W/24V & TIME DELAY 208-240 3PH 60 VOLTAGE NOTE 3 |
$1,150 |
REQUIRED
EQUIPMENT for 480/3/60V Air Curtains |
Model
No. |
Description |
Price |
|
CONTROL
PANEL W/24V 480/3/60 VOLTAGE NOTE 1 |
$938 |
|
CONTROL
PANEL W/24V & TIME DELAY 480/3/60 VOLTAGE NOTE 3 |
$1,133 |
|
REQUIRED
EQUIPMENT for Air Curtains (IDC14-4144
models only - 12' door width) |
Model
No. |
Description |
Price |
|
CONTROL
PANEL W/24V 120-240/1/60 VOLTAGE NOTE 1 |
$1,241 |
|
CONTROL
PANEL W/24V & TIME DELAY 120-240/1/60 VOLTAGE NOTE 3 |
$1,408 |
|
CONTROL
PANEL W/24V 208-240/3/60 VOLTAGE NOTE 1 |
$1,186 |
|
CONTROL
PANEL W/24V & TIME DELAY 208-240/3/60 VOLTAGE NOTE 3 |
$1,381 |
|
CONTROL
PANEL W/24V 480/3/60 VOLTAGE NOTE 1 |
$1,194 |
|
CONTROL
PANEL W/24V & TIME DELAY 480/3/60 VOLTAGE NOTE 3 |
$1,389 |
|
|
NOTE
1: ALL OVERHEAD DOOR TYPES EXCLUDING HIGH SPEED DOORS. FACTORY INSTALLED/WIRED
LEFT HAND
END PLATE STANDARD, RIGHT HAND OR REMOTE MOUNTED AVAILABLE AT NO ADDITIONAL
COST, MUST SPECIFY
WITH ORDER. |
NOTE
3: REQUIRED FOR AIR CURTAINS INSTALLED ABOVE HIGH SPEED DOORS ONLY.
HEAVY DUTY MAGNETIC REED
DOOR SWITCH CANNOT BE USED AND THE AIR CURTAIN MUST BE ACTIVATED THROUGH
A CONTACT IN THE
CONTROL PANEL OF THE HIGH SPEED DOOR. |
|
|
OPTIONAL
EQUIPMENT |
|

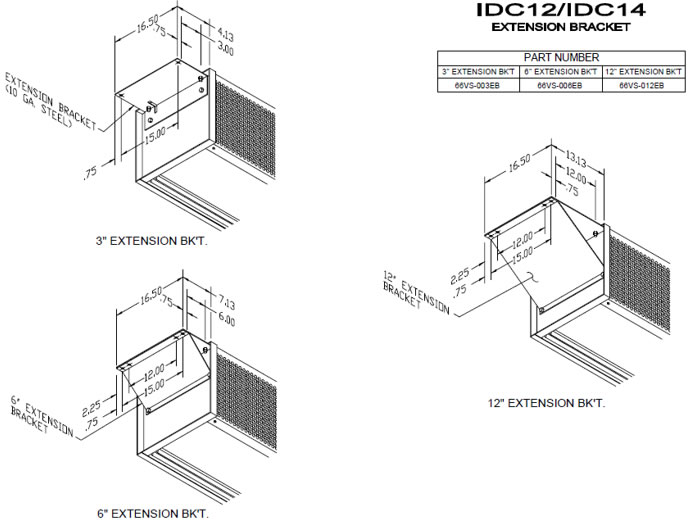

When
factory mounted extension brackets are required (extend the top mounting
holes outside of the overhead door
track), all control panels MUST BE REMOTE MOUNTED. The extension brackets
are available in 3", 6" and 12".
A pair of extension brackets required for each air curtain. |
|
 |
|

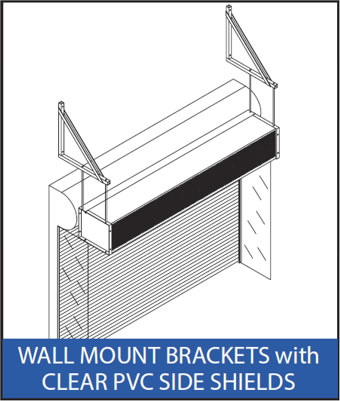

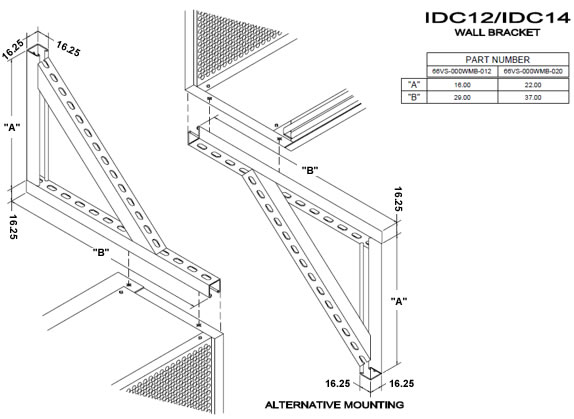

Wall
mounting brackets, available in 0"-12" and 0"-20". The
dimension is the distance between the wall and the
back side of the air curtain. |
|
 |
|
Note: Whenever the back of the air curtain is spaced back 6" or more
from the wall, side shield must be
installed on both side of the opening to prevent outside air from entering
through the gaps on both sides
of the opening. |
|
 |
|
|
|
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
|
|
|
OPTIONS
FOR IDC12 |
MODEL
NO. |
DESCRIPTION |
PRICE
Ea. |
|
*3"
Extension Bracket (2) required per Air Curtain (factory mounted) |
$88 |
|
*6"
Extension Bracket (2) required per Air Curtain (factory mounted) |
$128 |
|
*12"
Extension Bracket (2) required per Air Curtain (factory mounted) |
$152 |
|
0"-12"
Wall Bracket (2) required per Air Curtain (field mounted) |
$160 |
|
0"-20"
Wall Bracket (2) required per Air Curtain (field mounted) |
$173 |
|
*REQUIRED
FOR AIR CURTAINS INSTALLED ABOVE HIGH SPEED DOORS ONLY. HEAVY DUTY MAGNETIC
REED DOOR
SWITCH CANNOT BE USED AND THE AIR CURTAIN MUST BE ACTIVATED THROUGH A CONTACT
IN THE CONTROL
PANEL OF THE HIGH SPEED DOOR. |
|
Ambient
(Unheated) Air Curtain
Electrical Performance Chart |
|
120/1/60
(volt code A) |
208/1/60
(volt code B) |
240/1/60
(volt code J) |
motor
amp draw = 12.6 ea. |
motor
amp draw = 6.5 ea. |
motor
amp draw = 6.5 ea. |
MODEL |
#
ckts |
amps
per
circuit |
breaker
rating per
circuit |
#
ckts |
amps
per
circuit |
breaker
rating per
circuit |
#
ckts |
amps
per
circuit |
breaker
rating per
circuit |
IDC14-3096A |
1 |
37.8 |
45 |
1 |
19.5 |
30 |
1 |
19.5 |
30 |
IDC14-3108A |
IDC14-3120A |
IDC14-4144A |
1 |
50.4 |
60 |
1 |
26.0 |
35 |
1 |
26.0 |
35 |
|
208/3/60
(volt code J) |
240/3/60
(volt code Y) |
480/3/60
(volt code Z) |
motor
amp draw = 6.5 ea. |
motor
amp draw = 6.5 ea. |
motor
amp draw = 3.2 ea. |
MODEL |
#
ckts |
amps
per
circuit |
breaker
rating per
circuit |
#
ckts |
amps
per
circuit |
breaker
rating per
circuit |
#
ckts |
amps
per
circuit |
breaker
rating per
circuit |
IDC14-3096A |
1 |
19.5 |
30 |
1 |
19.5 |
30 |
1 |
9.6 |
15 |
IDC14-3108A |
IDC14-3120A |
IDC14-4144A |
1 |
26.0 |
35 |
1 |
26.0 |
35 |
1 |
12.8 |
20 |
|
|
IDC14
AMBIENT SYSTEM |
|
 |
|
IDC14
AMBIENT SYSTEM TOP INTAKE |
|
 |
|
|
|
|
|
| NOTES: |
|
|
|
1.
Air curtain must be installed so air stream is not obstructed when
deflected 20° to either side of Ç. |
|
|
| 2.
Electrical connections to be flexible. |
|
|
|
|
| 3.
Field verify dimensions. |
|
|
|
|
| 4.
Anchors to supporting structure by others. |
|
|
|
|
5.
Adequacy of supporting structure is to be verified by a professional
structural engineer. |
|
|
| 6.
Letter "A" in model number designates ambient unit. |
|
|
| 7.
Dimensions in inches [centimeters]. |
|
|
|
|
|
|
|
|
|
MODEL |
Nozzle
Width "A" |
Mounting
Width "B" |
Unit
Width "C" |
IDC14-3096A |
99.00
[251.46] |
100.50
[255.27] |
102.00
[259.08] |
IDC14-3108A |
108.00
[274.32] |
109.50
[278.13] |
111.00
[281.94] |
IDC14-3120A |
117.00
[297.18] |
118.50
[300.99] |
120.00
[304.80] |
IDC14-4144A |
144.00
[365.76] |
145.50
[369.57] |
147.00
[373.38] |
|
|
|
Industrial Direct Drive Air
Curtain, IDC14 Series Air Curtain, Commercial Air Curtain, Commercial
Air Door, Unheated Air Curtain,
Air Curtains, and Insect Barrier from your source for material handling
equipment. |
|
