ALUMINUM
PREFABRICATED

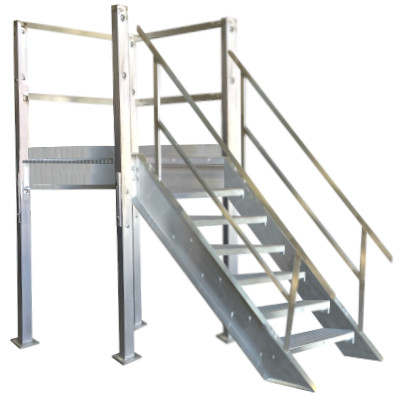

STAIR LANDINGS EXIT LEFT
|
|
|
|
|
|
|
Heavy
Duty Structural Aluminum Platforms
|
Easy
Bolt Together Assembly - Made to your size requirements |
|
|
|
|
|
|
|
Meets
OSHA Requirements |
|
 |
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CUSTOM
SIZES - SAME DAY QUOTES |
|
|
|
|
|
|
Custom sizes and
configurations are readily available. We provide same day price quotes
if you require a special
landing size, stair angle, specific tread rise/run, or a maximum horizontal
stair run to satisfy available floor space
constraints.
See
photos below price tables for examples of custom applications. |
|
|
 |
|
| NOTE: Stairs not included, |
|
|

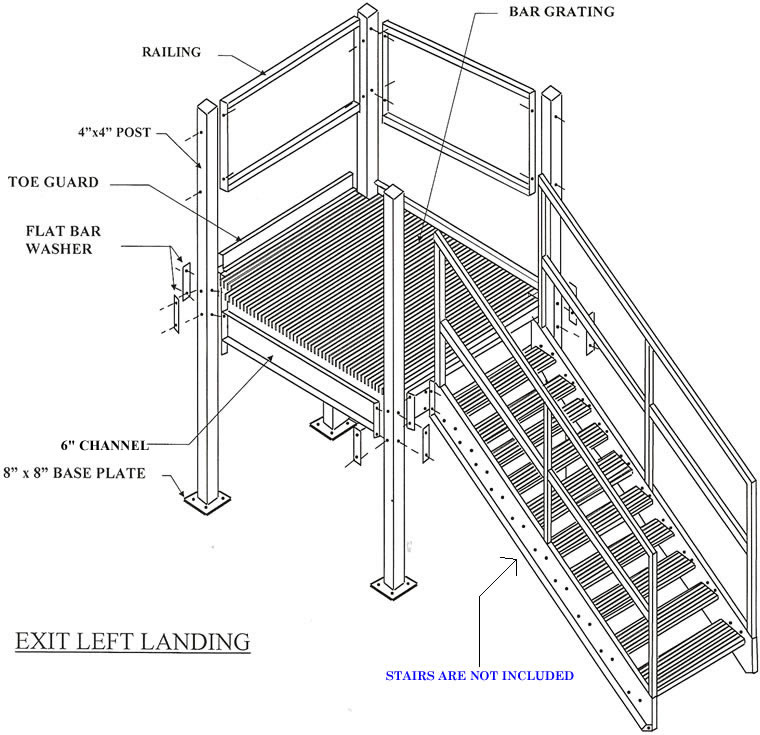

DIAGRAMS |
 |
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click a Price of the item you wish to purchase. |
|
|
|
Custom
Sizes: These models listed below can be modified
to any dimensions necessary to meet your exact
requirements. |
|
Standard
Finish: |
Mill
Finish Aluminum |
|
|
Click
here to view the
Stairs and Landings
Assembly Instructions. |
|
|
|
|
Ordering
Note: Specify any intermediate height and
use price of next standard
height. We will fabricate units to your exact requirements. Order
stairs separately. |
|
|
|
|
|
|
|
|
|
Stair
Tread
Width |
Landing
Width |
Landing
Depth |
Deck
Height
Above Floor |
Overall
Height |
Model
No. |
Price |
36 |
42 |
42 |
36 |
78 |
LND-EL-AL3636 |
|
36 |
42 |
42 |
42 |
84 |
LND-EL-AL3642 |
|
36 |
42 |
42 |
48 |
90 |
LND-EL-AL3648 |
|
36 |
42 |
42 |
54 |
96 |
LND-EL-AL3654 |
|
36 |
42 |
42 |
60 |
102 |
LND-EL-AL3660 |
|
36 |
42 |
42 |
66 |
108 |
LND-EL-AL3666 |
|
36 |
42 |
42 |
72 |
114 |
LND-EL-AL3672 |
|
36 |
42 |
42 |
78 |
120 |
LND-EL-AL3678 |
|
36 |
42 |
42 |
84 |
126 |
LND-EL-AL3684 |
|
36 |
42 |
42 |
90 |
132 |
LND-EL-AL3690 |
|
36 |
42 |
42 |
96 |
138 |
LND-EL-AL3696 |
|
36 |
42 |
42 |
102 |
144 |
LND-EL-AL36102 |
|
36 |
42 |
42 |
108 |
150 |
LND-EL-AL36108 |
|
36 |
42 |
42 |
114 |
156 |
LND-EL-AL36114 |
|
36 |
42 |
42 |
120 |
162 |
LND-EL-AL36120 |
|
36 |
42 |
42 |
126 |
168 |
LND-EL-AL36126 |
|
36 |
42 |
42 |
132 |
174 |
LND-EL-AL36132 |
|
36 |
42 |
42 |
138 |
180 |
LND-EL-AL36138 |
|
36 |
42 |
42 |
144 |
186 |
LND-EL-AL36144 |
|
48 |
54 |
54 |
36 |
78 |
LND-EL-AL4836 |
|
48 |
54 |
54 |
42 |
84 |
LND-EL-AL4842 |
|
48 |
54 |
54 |
48 |
90 |
LND-EL-AL4848 |
|
48 |
54 |
54 |
54 |
96 |
LND-EL-AL4854 |
|
48 |
54 |
54 |
60 |
102 |
LND-EL-AL4860 |
|
48 |
54 |
54 |
66 |
108 |
LND-EL-AL4866 |
|
48 |
54 |
54 |
72 |
114 |
LND-EL-AL4872 |
|
48 |
54 |
54 |
78 |
120 |
LND-EL-AL4878 |
|
48 |
54 |
54 |
84 |
126 |
LND-EL-AL4884 |
|
48 |
54 |
54 |
90 |
132 |
LND-EL-AL4890 |
|
48 |
54 |
54 |
96 |
138 |
LND-EL-AL4896 |
|
48 |
54 |
54 |
102 |
144 |
LND-EL-AL48102 |
|
48 |
54 |
54 |
108 |
150 |
LND-EL-AL48108 |
|
48 |
54 |
54 |
114 |
156 |
LND-EL-AL48114 |
|
48 |
54 |
54 |
120 |
162 |
LND-EL-AL48120 |
|
48 |
54 |
54 |
126 |
168 |
LND-EL-AL48126 |
|
48 |
54 |
54 |
132 |
174 |
LND-EL-AL48132 |
|
48 |
54 |
54 |
138 |
180 |
LND-EL-AL48138 |
|
48 |
54 |
54 |
144 |
186 |
LND-EL-AL48144 |
|
|
|
|
|
NOTE:
Stairs not included,
CLICK
HERE TO ORDER STAIRS |
|
|
 |
 |

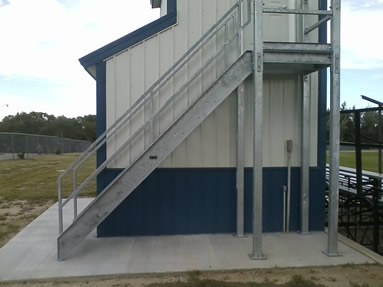

Galvanized
exit left stair landing |

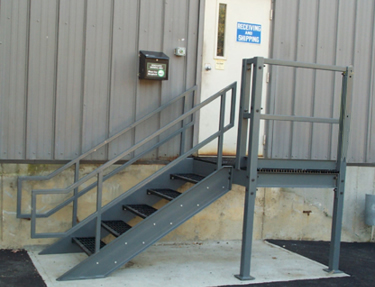

Boca
type stair (7/11 tread rise-run) and
exit left landing at receiving entrance |
|
|
|
| Order
stairs separately |
Order
stairs separately |
|
|
|
|
|
|
|
 |
|
|
 |
|
|

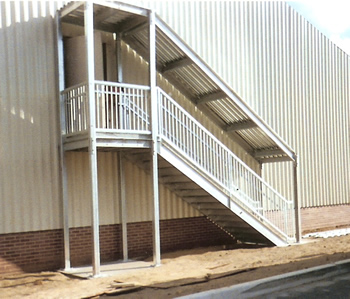

Galvanized
IBC Stair & Landing |
|
|

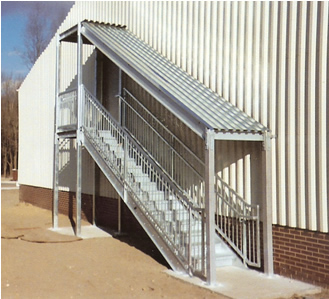

Galvanized
IBC Stair & Landing |
|
|
|
|
|
|
|
 |
|
IBC
CODE REQUIREMENTS FOR STAIR LANDINGS |
|
1011.6
Stairway landings. There shall be a floor or landing
at the top and bottom of each stairway. The width of
landings shall be not less than the width of stairways served. Every
landing shall have a minimum width measured
perpendicular to the direction of travel equal to the width of the stairway. Where the stairway has a straight run the
depth need not exceed 48". Doors opening onto a landing shall not reduce
the landing to less than one-half the
required width. When fully open, the door shall not project more than 7"
into a landing. Where wheelchair spaces
are required on the stairway landing in accordance with Section 1009.6.3,
the wheelchair space shall not be located
in the required width of the landing and doors shall not swing over the wheelchair spaces. |
|
